NetCore6.0 Memory Cache (Web XML Data)


using Microsoft.AspNetCore.Mvc;
using InMemoryCacheCore.Models;
using InMemoryCacheCore.Services;

namespace InMemoryCacheCore.Controllers
{
    [ApiController]
    [Route("[controller]")]
    public class AirlineController : ControllerBase
    {
        private readonly ICodeService _codeService;
        private readonly ICacheService _cacheService;

        private readonly ILogger<AirlineController> _logger;

        public AirlineController(ICodeService codeService, ICacheService cacheService, ILogger<AirlineController> logger)
        {
            _codeService = codeService ?? throw new ArgumentNullException(nameof(codeService));
            _cacheService = cacheService ?? throw new ArgumentNullException(nameof(cacheService));
            _logger = logger;
        }

        [HttpGet(Name = "AirlineCode")]
        public async Task<IEnumerable<Code>> Get()
        {
            try
            {
                IEnumerable<Code> codes = _cacheService.GetCachedCode("_Codes");

                if (codes == null || !codes.Any())
                {
                    codes = await _codeService.GetCodeAsync();
                }

                return codes ?? new List<Code>();

                //codes = codes.Where(s => s.Airlinecode.Equals("KE", StringComparison.Ordinal)) ?? new List<Code>();
                //return codes;

            }
            catch (Exception ex)
            {
                _logger.LogError(ex, "정보를 가져오는 동안 오류가 발생했습니다.");
                throw;
            }

        }


    }
}

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

using Microsoft.AspNetCore.Mvc;

using InMemoryCacheCore.Models;

using InMemoryCacheCore.Services;

namespace InMemoryCacheCore.Controllers

{

[ApiController]

[Route("[controller]")]

public class AirlineController : ControllerBase

{

private readonly ICodeService _codeService;

private readonly ICacheService _cacheService;

private readonly ILogger<AirlineController> _logger;

public AirlineController(ICodeService codeService, ICacheService cacheService, ILogger<AirlineController> logger)

{

_codeService = codeService ?? throw new ArgumentNullException(nameof(codeService));

_cacheService = cacheService ?? throw new ArgumentNullException(nameof(cacheService));

_logger = logger;

}

[HttpGet(Name = "AirlineCode")]

public async Task<IEnumerable<Code>> Get()

{

try

{

IEnumerable<Code> codes = _cacheService.GetCachedCode("_Codes");

if (codes == null || !codes.Any())

{

codes = await _codeService.GetCodeAsync();

}

return codes ?? new List<Code>();

//codes = codes.Where(s => s.Airlinecode.Equals("KE", StringComparison.Ordinal)) ?? new List<Code>();

//return codes;

}

catch (Exception ex)

{

_logger.LogError(ex, "정보를 가져오는 동안 오류가 발생했습니다.");

throw;

}


using InMemoryCacheCore.Models;
using System.Xml.Serialization;

namespace InMemoryCacheCore.Infrastructure
{
    public interface IHttpClient
    {
        Task<IEnumerable<Code>> Get();
    }

    public class AirlineHttpClient : IHttpClient
    {
        private const string API_URL = "https://auctionpro.co.kr/airlinecode.xml";

        private readonly HttpClient _httpClient;

        public AirlineHttpClient(HttpClient httpClient)
        {
            _httpClient = httpClient;
        }

        public async Task<IEnumerable<Code>> Get()
        {
            HttpResponseMessage response = await _httpClient.GetAsync(API_URL);

            if (response.IsSuccessStatusCode)
            {
                await using var responseStream = await response.Content.ReadAsStreamAsync();

                var serializer = new XmlSerializer(typeof(Root));
                var codesResponse = serializer.Deserialize(responseStream) as Root;

                var codes = codesResponse?.Code ?? new List<Code>();

                return codes;
            }
            else
            {
                // 예외 메시지에 실패 원인 추가
                throw new Exception($"API 호출 실패: {response.StatusCode}");

            }
        }
    }
}

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

using InMemoryCacheCore.Models;

using System.Xml.Serialization;

namespace InMemoryCacheCore.Infrastructure

{

public interface IHttpClient

{

Task<IEnumerable<Code>> Get();

}

public class AirlineHttpClient : IHttpClient

{

private const string API_URL = "https://auctionpro.co.kr/airlinecode.xml";

private readonly HttpClient _httpClient;

public AirlineHttpClient(HttpClient httpClient)

{

_httpClient = httpClient;

}

public async Task<IEnumerable<Code>> Get()

{

HttpResponseMessage response = await _httpClient.GetAsync(API_URL);

if (response.IsSuccessStatusCode)

{

await using var responseStream = await response.Content.ReadAsStreamAsync();

var serializer = new XmlSerializer(typeof(Root));

var codesResponse = serializer.Deserialize(responseStream) as Root;

var codes = codesResponse?.Code ?? new List<Code>();

return codes;

}

else

{

// 예외 메시지에 실패 원인 추가

throw new Exception($"API 호출 실패: {response.StatusCode}");

}


using Microsoft.Extensions.Caching.Memory;

namespace InMemoryCacheCore.Infrastructure
{
    public interface ICacheProvider
    {
        T? GetFromCache<T>(string key) where T : class;
        void SetCache<T>(string key, T value, MemoryCacheEntryOptions options) where T : class;
        void ClearCache(string key);
    }

    public class CacheProvider : ICacheProvider
    {
        private readonly IMemoryCache _cache;

        public CacheProvider(IMemoryCache cache)
        {
            _cache = cache;
        }

        public T? GetFromCache<T>(string key) where T : class
        {
            //_cache.TryGetValue(key, out T cachedResponse);
            //return cachedResponse as T;
            return _cache.Get<T>(key);
        }

        public void SetCache<T>(string key, T value, MemoryCacheEntryOptions options) where T : class
        {
            _cache.Set(key, value, options);
        }

        public void ClearCache(string key)
        {
            _cache.Remove(key);
        }
    }
}

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

using Microsoft.Extensions.Caching.Memory;

namespace InMemoryCacheCore.Infrastructure

{

public interface ICacheProvider

{

T? GetFromCache<T>(string key) where T : class;

void SetCache<T>(string key, T value, MemoryCacheEntryOptions options) where T : class;

void ClearCache(string key);

}

public class CacheProvider : ICacheProvider

{

private readonly IMemoryCache _cache;

public CacheProvider(IMemoryCache cache)

{

_cache = cache;

}

public T? GetFromCache<T>(string key) where T : class

{

//_cache.TryGetValue(key, out T cachedResponse);

//return cachedResponse as T;

return _cache.Get<T>(key);

}

public void SetCache<T>(string key, T value, MemoryCacheEntryOptions options) where T : class

{

_cache.Set(key, value, options);

}

public void ClearCache(string key)

{

_cache.Remove(key);

}


using System.Xml.Serialization;

namespace InMemoryCacheCore.Models
{
    [XmlRoot(ElementName = "Root")]
    public class Root
    {
        [XmlElement(ElementName = "Code")]
        public List<Code>? Code { get; set; }
    }

    [XmlRoot(ElementName = "Code")]
    public class Code
    {
        [XmlElement(ElementName = "Airlinecode")]
        public string Airlinecode { get; set; }

        [XmlElement(ElementName = "Airline3code")]
        public string? Airline3code { get; set; }

        [XmlElement(ElementName = "Airlinekor")]
        public string? Airlinekor { get; set; }

        [XmlElement(ElementName = "Airlineeng")]
        public string? Airlineeng { get; set; }
    }
}

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

using System.Xml.Serialization;

namespace InMemoryCacheCore.Models

{

[XmlRoot(ElementName = "Root")]

public class Root

{

[XmlElement(ElementName = "Code")]

public List<Code>? Code { get; set; }

}

[XmlRoot(ElementName = "Code")]

public class Code

{

[XmlElement(ElementName = "Airlinecode")]

public string Airlinecode { get; set; }

[XmlElement(ElementName = "Airline3code")]

public string? Airline3code { get; set; }

[XmlElement(ElementName = "Airlinekor")]

public string? Airlinekor { get; set; }

[XmlElement(ElementName = "Airlineeng")]

public string? Airlineeng { get; set; }

}


using InMemoryCacheCore.Infrastructure;
using InMemoryCacheCore.Models;
using Microsoft.Extensions.Caching.Memory;

namespace InMemoryCacheCore.Services
{
    public class CachedCodeService : ICodeService
    {
        private readonly CodeService _codeService;
        private readonly ICacheProvider _cacheProvider;

        private const int CacheTTLInSeconds = 100;
        private readonly MemoryCacheEntryOptions cacheEntryOptions = new MemoryCacheEntryOptions()
                    .SetSlidingExpiration(TimeSpan.FromSeconds(CacheTTLInSeconds));

        private static readonly SemaphoreSlim GetUsersSemaphore = new(1, 1);

        public CachedCodeService(CodeService codeService, ICacheProvider cacheProvider)
        {
            _codeService = codeService;
            _cacheProvider = cacheProvider;
        }

        public async Task<IEnumerable<Code>> GetCodeAsync()
        {
            return await GetCachedResponse("_Codes", GetUsersSemaphore, () => _codeService.GetCodeAsync());
        }

        private async Task<IEnumerable<Code>> GetCachedResponse(string cacheKey, SemaphoreSlim semaphore, Func<Task<IEnumerable<Code>>> func)
        {
            var users = _cacheProvider?.GetFromCache<IEnumerable<Code>>(cacheKey);
            if (users != null) return users;

            try
            {
                await semaphore.WaitAsync();

                users = _cacheProvider?.GetFromCache<IEnumerable<Code>>(cacheKey); // Recheck to make sure it didn't populate before entering semaphore
                if (users != null) return users;

                users = await func();

                _cacheProvider?.SetCache(cacheKey, users, cacheEntryOptions);
            }
            finally
            {
                semaphore.Release();
            }

            return users;
        }


    }
}

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

using InMemoryCacheCore.Infrastructure;

using InMemoryCacheCore.Models;

using Microsoft.Extensions.Caching.Memory;

namespace InMemoryCacheCore.Services

{

public class CachedCodeService : ICodeService

{

private readonly CodeService _codeService;

private readonly ICacheProvider _cacheProvider;

private const int CacheTTLInSeconds = 100;

private readonly MemoryCacheEntryOptions cacheEntryOptions = new MemoryCacheEntryOptions()

.SetSlidingExpiration(TimeSpan.FromSeconds(CacheTTLInSeconds));

private static readonly SemaphoreSlim GetUsersSemaphore = new(1, 1);

public CachedCodeService(CodeService codeService, ICacheProvider cacheProvider)

{

_codeService = codeService;

_cacheProvider = cacheProvider;

}

public async Task<IEnumerable<Code>> GetCodeAsync()

{

return await GetCachedResponse("_Codes", GetUsersSemaphore, () => _codeService.GetCodeAsync());

}

private async Task<IEnumerable<Code>> GetCachedResponse(string cacheKey, SemaphoreSlim semaphore, Func<Task<IEnumerable<Code>>> func)

{

var users = _cacheProvider?.GetFromCache<IEnumerable<Code>>(cacheKey);

if (users != null) return users;

try

{

await semaphore.WaitAsync();

users = _cacheProvider?.GetFromCache<IEnumerable<Code>>(cacheKey); // Recheck to make sure it didn't populate before entering semaphore

if (users != null) return users;

users = await func();

_cacheProvider?.SetCache(cacheKey, users, cacheEntryOptions);

}

finally

{

semaphore.Release();

}

return users;

}


using InMemoryCacheCore.Infrastructure;
using InMemoryCacheCore.Models;

namespace InMemoryCacheCore.Services
{
    public interface ICacheService
    {
        IEnumerable<Code> GetCachedCode(string cacheKey);
    }

    public class CacheService : ICacheService
    {
        private readonly ICacheProvider _cacheProvider;

        public CacheService(ICacheProvider cacheProvider) {
            _cacheProvider = cacheProvider;
        }

        public IEnumerable<Code> GetCachedCode(string cacheKey)
        {
            return _cacheProvider.GetFromCache<IEnumerable<Code>>(cacheKey);
        }

        public void ClearCache(string cachekey) {
            _cacheProvider.ClearCache(cachekey);
        }

    }
}

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

using InMemoryCacheCore.Infrastructure;

using InMemoryCacheCore.Models;

namespace InMemoryCacheCore.Services

{

public interface ICacheService

{

IEnumerable<Code> GetCachedCode(string cacheKey);

}

public class CacheService : ICacheService

{

private readonly ICacheProvider _cacheProvider;

public CacheService(ICacheProvider cacheProvider) {

_cacheProvider = cacheProvider;

}

public IEnumerable<Code> GetCachedCode(string cacheKey)

{

return _cacheProvider.GetFromCache<IEnumerable<Code>>(cacheKey);

}

public void ClearCache(string cachekey) {

_cacheProvider.ClearCache(cachekey);

}


using InMemoryCacheCore.Infrastructure;
using InMemoryCacheCore.Models;

namespace InMemoryCacheCore.Services
{
    public interface ICodeService
    {
        Task<IEnumerable<Code>> GetCodeAsync();
    }

    public class CodeService : ICodeService
    {
        private readonly IHttpClient _httpClient;

        public CodeService(IHttpClient httpClient)
        {
            _httpClient = httpClient;
        }

        public Task<IEnumerable<Code>> GetCodeAsync()
        {
            return _httpClient.Get();
        }
    }
}

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

using InMemoryCacheCore.Infrastructure;

using InMemoryCacheCore.Models;

namespace InMemoryCacheCore.Services

{

public interface ICodeService

{

Task<IEnumerable<Code>> GetCodeAsync();

}

public class CodeService : ICodeService

{

private readonly IHttpClient _httpClient;

public CodeService(IHttpClient httpClient)

{

_httpClient = httpClient;

}

public Task<IEnumerable<Code>> GetCodeAsync()

{

return _httpClient.Get();

}


using InMemoryCacheCore.Infrastructure;
using InMemoryCacheCore.Services;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.

builder.Services.AddControllers();
// Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();

//
builder.Services.AddHttpClient();

builder.Services.AddSingleton<CodeService>(); //MainService
builder.Services.AddSingleton<ICodeService, CachedCodeService>(); //User 연결 서비스

builder.Services.AddSingleton<ICacheService, CacheService>();   //캐싱 서비스
builder.Services.AddSingleton<ICacheProvider, CacheProvider>(); //infrastructure
builder.Services.AddSingleton<IHttpClient, AirlineHttpClient>();     //infrastructure
builder.Services.AddMemoryCache();

var app = builder.Build();

// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}


 app.UseHttpsRedirection();


app.UseAuthorization();

app.MapControllers();

app.Run();

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

using InMemoryCacheCore.Infrastructure;

using InMemoryCacheCore.Services;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.

builder.Services.AddControllers();

// Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle

builder.Services.AddEndpointsApiExplorer();

builder.Services.AddSwaggerGen();

//

builder.Services.AddHttpClient();

builder.Services.AddSingleton<CodeService>(); //MainService

builder.Services.AddSingleton<ICodeService, CachedCodeService>(); //User 연결 서비스

builder.Services.AddSingleton<ICacheService, CacheService>(); //캐싱 서비스

builder.Services.AddSingleton<ICacheProvider, CacheProvider>(); //infrastructure

builder.Services.AddSingleton<IHttpClient, AirlineHttpClient>(); //infrastructure

builder.Services.AddMemoryCache();

var app = builder.Build();

// Configure the HTTP request pipeline.

if (app.Environment.IsDevelopment())

{

app.UseSwagger();

app.UseSwaggerUI();

}

app.UseHttpsRedirection();

app.UseAuthorization();

app.MapControllers();

app.Run();


[
  {
    "airlinecode": "0B",
    "airline3code": null,
    "airlinekor": "Blue Air",
    "airlineeng": null
  },
  {
    "airlinecode": "0J",
    "airline3code": null,
    "airlinekor": "Premium Jet AG",
    "airlineeng": null
  },
  {
    "airlinecode": "0Y",
    "airline3code": null,
    "airlinekor": "FlyYeti",
    "airlineeng": null
  },
  {
    "airlinecode": "1M",
    "airline3code": null,
    "airlinekor": "JSC Transport Auto Info Systems",
    "airlineeng": null
  },
  {
    "airlinecode": "1X",
    "airline3code": null,
    "airlinekor": "Branson Air Express",
    "airlineeng": null
  },
  {
    "airlinecode": "2A",
    "airline3code": null,
    "airlinekor": "Deutsche Bahn",
    "airlineeng": null
  },
  {
    "airlinecode": "2B",
    "airline3code": null,
    "airlinekor": "Albawings",
    "airlineeng": null
  },
  {
    "airlinecode": "2C",
    "airline3code": null,
    "airlinekor": "SNCF",
    "airlineeng": null
  },
  {
    "airlinecode": "2D",
    "airline3code": null,
    "airlinekor": "Dynamic Airways",
    "airlineeng": null
  },
  {
    "airlinecode": "2E",
    "airline3code": null,
    "airlinekor": "Smokey Bay Air",
    "airlineeng": null
  },
  {
    "airlinecode": "2G",
    "airline3code": null,
    "airlinekor": "DEBONAIR AIRWAYS",
    "airlineeng": null
  },
  {
    "airlinecode": "2I",
    "airline3code": null,
    "airlinekor": "Star Peru",
    "airlineeng": null
  },
  {
    "airlinecode": "2J",
    "airline3code": null,
    "airlinekor": "Air Burkina",
    "airlineeng": null
  },
  ............................
]

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

[

{

"airlinecode": "0B",

"airline3code": null,

"airlinekor": "Blue Air",

"airlineeng": null

},

{

"airlinecode": "0J",

"airline3code": null,

"airlinekor": "Premium Jet AG",

"airlineeng": null

},

{

"airlinecode": "0Y",

"airline3code": null,

"airlinekor": "FlyYeti",

"airlineeng": null

},

{

"airlinecode": "1M",

"airline3code": null,

"airlinekor": "JSC Transport Auto Info Systems",

"airlineeng": null

},

{

"airlinecode": "1X",

"airline3code": null,

"airlinekor": "Branson Air Express",

"airlineeng": null

},

{

"airlinecode": "2A",

"airline3code": null,

"airlinekor": "Deutsche Bahn",

"airlineeng": null

},

{

"airlinecode": "2B",

"airline3code": null,

"airlinekor": "Albawings",

"airlineeng": null

},

{

"airlinecode": "2C",

"airline3code": null,

"airlinekor": "SNCF",

"airlineeng": null

},

{

"airlinecode": "2D",

"airline3code": null,

"airlinekor": "Dynamic Airways",

"airlineeng": null

},

{

"airlinecode": "2E",

"airline3code": null,

"airlinekor": "Smokey Bay Air",

"airlineeng": null

},

{

"airlinecode": "2G",

"airline3code": null,

"airlinekor": "DEBONAIR AIRWAYS",

"airlineeng": null

},

{

"airlinecode": "2I",

"airline3code": null,

"airlinekor": "Star Peru",

"airlineeng": null

},

{

"airlinecode": "2J",

"airline3code": null,

"airlinekor": "Air Burkina",

"airlineeng": null

},

............................

]

NetCore6.0 Memory Cache (Web XML Data)

1. Memory Cache Simple sample

2. Memory Cache Interface sample (web XML Data)

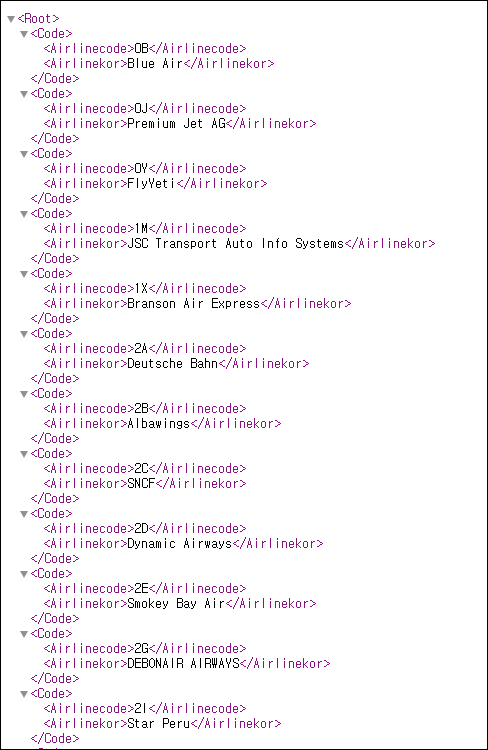

Web XML Data

UML

Program Files

AirlineController

AirlineHttpClient

CacheProvider

Models->Airlines

CachedCodeService

CacheService

CodeService

Program.cs

Response body
